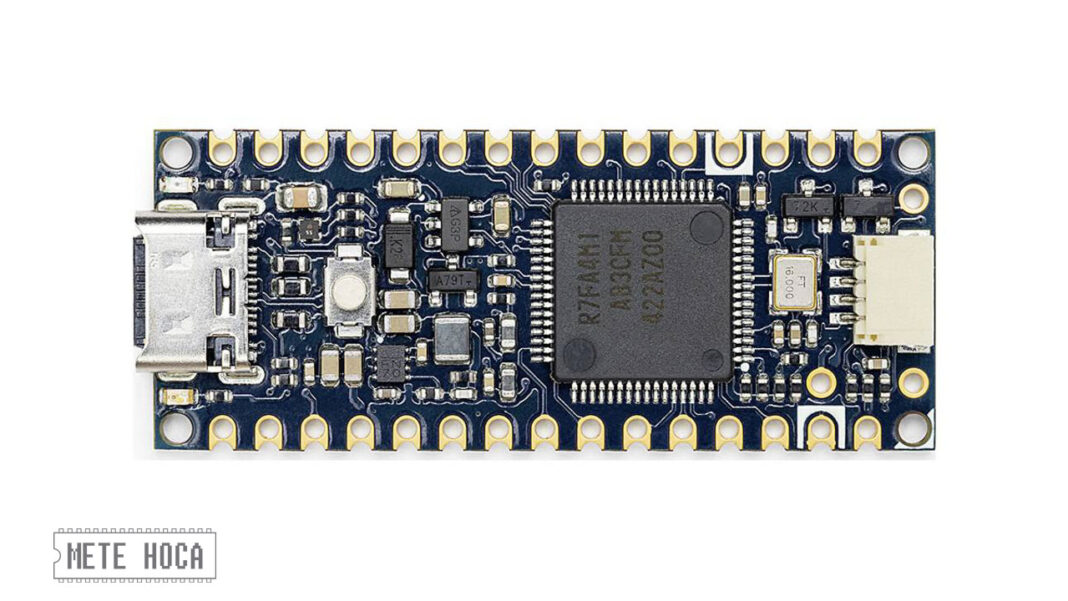

Arduino Nano R4 ve Modulino’ları kullanarak hazırladığım ve inceleme videosunda gösterdiğim örnek projenin sketch kodu.
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 |
//===================================================================// // // // \ | __| __ __| __| | | _ \ __| \ // // |\/ | _| | _| __ | ( | ( _ \ // // _| _| ___| _| ___| _| _| \___/ \___| _/ _\ // // // // Takip et. Beğen. Yorum Yap. Paylaş. // /*===================================================================// Kod : Arduino Nano R4 demo kodu Kart : Arduino Nano R4 / Modulino thermo, buttons, pixels, OLED *///===============================================================//// // YouTube : https://www.youtube.com/MeteHoca // // Instagram : https://www.instagram.com/metehoca/ // // Web : https://www.metehoca.com // //===================================================================// #include <Wire.h> #include <Modulino.h> #include <Adafruit_GFX.h> #include <Adafruit_SSD1306.h> ModulinoThermo thermo; ModulinoPixels leds; ModulinoButtons buttons; Adafruit_SSD1306 display(128, 64, &Wire1, -1); void drawCenteredStr(int y, const char* text, uint8_t size = 1) { display.setTextSize(size); int16_t text_width = strlen(text) * 6 * size; int16_t x = (128 - text_width) / 2; display.setCursor(x, y); display.println(text); } void updateLeds(float temperature) { const float minTemp = 25.0; const float maxTemp = 40.0; const int numLeds = 8; const int brightness = 16; for (int i = 0; i < numLeds; i++) { leds.set(i, VIOLET, 0); } int ledsToLight = 0; if (temperature < minTemp) { ledsToLight = 0; } else if (temperature >= minTemp && temperature < minTemp + 0.1) { ledsToLight = 1; } else if (temperature >= maxTemp) { ledsToLight = numLeds; } else { ledsToLight = (int)((temperature - minTemp) / (maxTemp - minTemp) * (numLeds - 1)) + 1; } for (int i = 0; i < ledsToLight; i++) { leds.set(i, VIOLET, brightness); } leds.show(); } void setup() { Modulino.begin(); thermo.begin(); leds.begin(); buttons.begin(); if (!display.begin(SSD1306_SWITCHCAPVCC, 0x3D, &Wire1)) while (true); display.clearDisplay(); display.setTextColor(SSD1306_WHITE); drawCenteredStr(3, "METE HOCA", 2); drawCenteredStr(23, "Arduino Nano R4", 1); drawCenteredStr(35, "Modulino", 1); drawCenteredStr(47, "Sicaklik Sensoru", 1); display.display(); pinMode(LEDR, OUTPUT); pinMode(LEDG, OUTPUT); pinMode(LEDB, OUTPUT); pinMode(LED_BUILTIN, OUTPUT); digitalWrite(LEDR, HIGH); digitalWrite(LEDG, HIGH); digitalWrite(LEDB, HIGH); digitalWrite(LED_BUILTIN, HIGH); digitalWrite(LEDR, LOW); delay(1000); digitalWrite(LEDR, HIGH); digitalWrite(LED_BUILTIN, LOW); digitalWrite(LEDG, LOW); delay(1000); digitalWrite(LEDG, HIGH); digitalWrite(LED_BUILTIN, LOW); digitalWrite(LEDB, LOW); delay(1000); digitalWrite(LEDB, HIGH); digitalWrite(LED_BUILTIN, HIGH); digitalWrite(LEDR, LOW); digitalWrite(LEDG, LOW); digitalWrite(LEDB, LOW); delay(1000); digitalWrite(LED_BUILTIN, LOW); digitalWrite(LEDR, HIGH); digitalWrite(LEDB, HIGH); digitalWrite(LEDG, HIGH); delay(2000); buttons.setLeds(false, true, false); } void loop() { static bool showTemperature = true; static bool autoMode = true; static unsigned long lastUpdate = 0; static unsigned long lastAutoSwitch = 0; const unsigned long displayInterval = 100; const unsigned long autoSwitchInterval = 2000; if (buttons.update()) { if (buttons.isPressed(0)) { autoMode = false; showTemperature = true; buttons.setLeds(true, false, false); } else if (buttons.isPressed(1)) { autoMode = true; buttons.setLeds(false, true, false); } else if (buttons.isPressed(2)) { autoMode = false; showTemperature = false; buttons.setLeds(false, false, true); } } unsigned long currentMillis = millis(); if (autoMode && currentMillis - lastAutoSwitch >= autoSwitchInterval) { showTemperature = !showTemperature; lastAutoSwitch = currentMillis; } if (currentMillis - lastUpdate >= displayInterval) { lastUpdate = currentMillis; float celsius = thermo.getTemperature(); float humidity = thermo.getHumidity(); updateLeds(celsius); char bufferTemp[16]; snprintf(bufferTemp, sizeof(bufferTemp), "%.1f%cC", celsius, (char)247); char bufferHum[16]; snprintf(bufferHum, sizeof(bufferHum), "%%%d", (int)humidity); display.clearDisplay(); if (showTemperature) { drawCenteredStr(8, "SICAKLIK", 2); drawCenteredStr(33, bufferTemp, 3); } else { drawCenteredStr(8, "NEM", 2); drawCenteredStr(33, bufferHum, 3); } display.display(); } } |
